Residential building sue&til, Winterthur

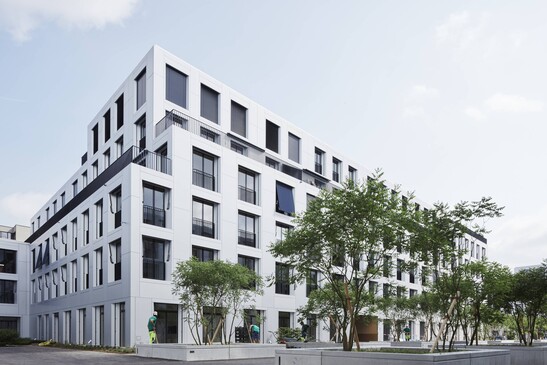

sue&til: The currently largest wooden residential building in Switzerland contains 307 apartments, a mixed-use ground floor and 200 parking lots. The 6-storey building is a flagship project for timber construction in Switzerland.

View of the kitchen zoom
View of the kitchen
Loggia with wooden columns and ceilings zoom
Loggia with wooden columns and ceilings
Installation of the ceiling elements to the staircase core zoom
Installation of the ceiling elements to the staircase core
Installation of pre-fabricated sanitary facilities zoom
Installation of pre-fabricated sanitary facilities

The Project

Often,delays in the construction process must be counted on for such large projects. However, not at sue&til in Winterthur. The first tenants were able to move into their apartments six months earlier than planned. Thanks to the innovative solutions and the dry construction method possible with wood, the first tenants were able to move into their apartments 14 months after the start of the erection work.

Functional modules with repetitive types of construction were developed for this project. At the same time, the floor plans are very individual and attractive for singles, couples, families or pensioners. The complex is not only interesting from an architectural and timber construction point of view. It also meets the highest energy requirements and fulfils the requirements of the 2000-watt society.

The Construction

sue&til consists of 80% wood. The ceilings as well as the interior and exterior walls consist of prefabricated elements. Only the staircase, the ground floor and the cellar are made of reinforced  concrete. Thanks to consistent digital planning and a high degree of prefabrication, sue&til is more economical in timber construction than a comparable reinforced concrete project.

The Challenges

The very fast construction method required consistent prefabrication and precise site logistics. This requires a complete and error-free planning of all components. Timbatec played its part with the factory planning, the fire protection and statics concept and the site inspections.

Construction Data

- Construction costs 162 million Swiss Francs

- Construction costs BKP 214 (timber construction) 15 million Swiss Francs

- Building volume 178'888 m3

- Floor areas 53'280 m3

- Solid and glued laminated timber 6'800 m3

- Veneer and multi-layer boards 1'130 m3

Services Timbatec

- Statics

- Construction

- Fire protection

- Work planning for factory

weberbrunner architekten
8045 Zürich
Timber Construction Engineer
Timbatec Holzbauingenieure Schweiz AG
Building Owner
Allianz Suisse
8010 Zürich
Total Contracting
Implenia Schweiz AG
8305 Dietlikon
