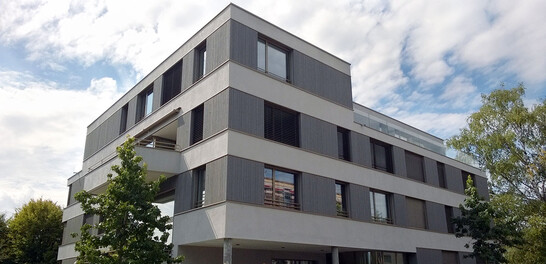

MFH Ringstrasse, Zürich Oerlikon
2013
The MFH Ringstrasse is a replacement building in mixed construction with 14 apartments in Minergie-P-Eco standard and was designed according to the SIA efficiency path energy.
The project
The staircase core, the apartment partition walls and the floor slab are constructed in concrete.
The load-bearing layer along the exterior walls is built in prefabricated timber construction, with individual load-bearing timber columns integrated into non-load-bearing timber frame walls. The entire attic floor was also constructed in timber.
The construction method
The non-load-bearing interior walls, on the other hand, were realized in plaster (dry construction). With this construction method, the highest possible flexibility for future changes of use was achieved.
Construction Data
- 560 m2 Facade elements
- 445 m2 Roof elements
- 14 m3 BSH columns integrated in exterior walls
Services of Timbatec
- SIA Phase 31 Preliminary design
- Fire protection planning
- cost estimate
- SIA Phase 32 Construction project
- Structural analysis and design
- SIA Phase 41 Tendering and comparison of offers
- SIA Phase 51 Implementation project
- Site supervision and site inspections
Architecture
mépp Partner Projekte AG
8004 Zurich
Civil engineer
Synaxis
8050 Zurich
Construction Management
LBM Partner Baumanagement
8152 Opfikon
Energy concept
Lemon Consult
8006 Zurich
